S-Series displacement sensors
  • S-Series displacement sensors

    The S series displacement sensor is the culmination of many years experience gained from a history of excellent displacement sensors coupled with attention to detail market feedback. The result is a large range of sensors that is able to satisfy todays demanding manufacturing and research applications.

    Keep Reading

    The Optimum series of LVDT sensors is an ideal choice for process control and research applications. The free core variants are designed for precise linear positioning and measurement of moving parts within a restricted space. The Optimum is also available as a guided option.

    Keep Reading

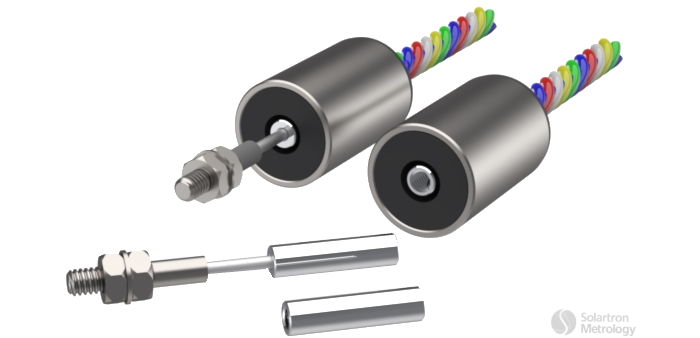

    SM Sensors cover two standard types in two measurement ranges; +1 mm and +3 mm. They are designed for measuring displacement in applications where infinite resolution and precise repeatability is required in a very small size. The coils are wound on a PPS (40% GL) former and housed in a stainless steel case. The epoxy bonded construction makes the device suitable for operation in wet and oily environments and in applications with high levels of mechanical stress. The core carrier assembly moves friction free within the sensor; an alternative option where the core is provided threaded at both ends is available, allowing the user to manufacture their own carrier interface. Recommended carrier material is titanium.

    Keep Reading

    The small case diameter (6mm and 8mm) allows for easy installation in confined spaces. A right angle output facility is available as a retrofit for the 8mm version. The low core weight makes this range ideal for use in low inertia systems. Cross talk is prevented by the screened cable, which also allows for multiple use of these sensors in close proximity.

    Keep Reading

    The DF dc miniature displacement sensor has a friction-free core and the DFg has a free guided core incorporating Delrin bearings. All types incorporate a linear variable differential transformer (LVDT) as the measuring source together with oscillator, demodulator and filter providing a self-contained unit accepting a DC input and providing a DC output relative to armature position.

    Keep Reading
